#!/usr/bin/env bash

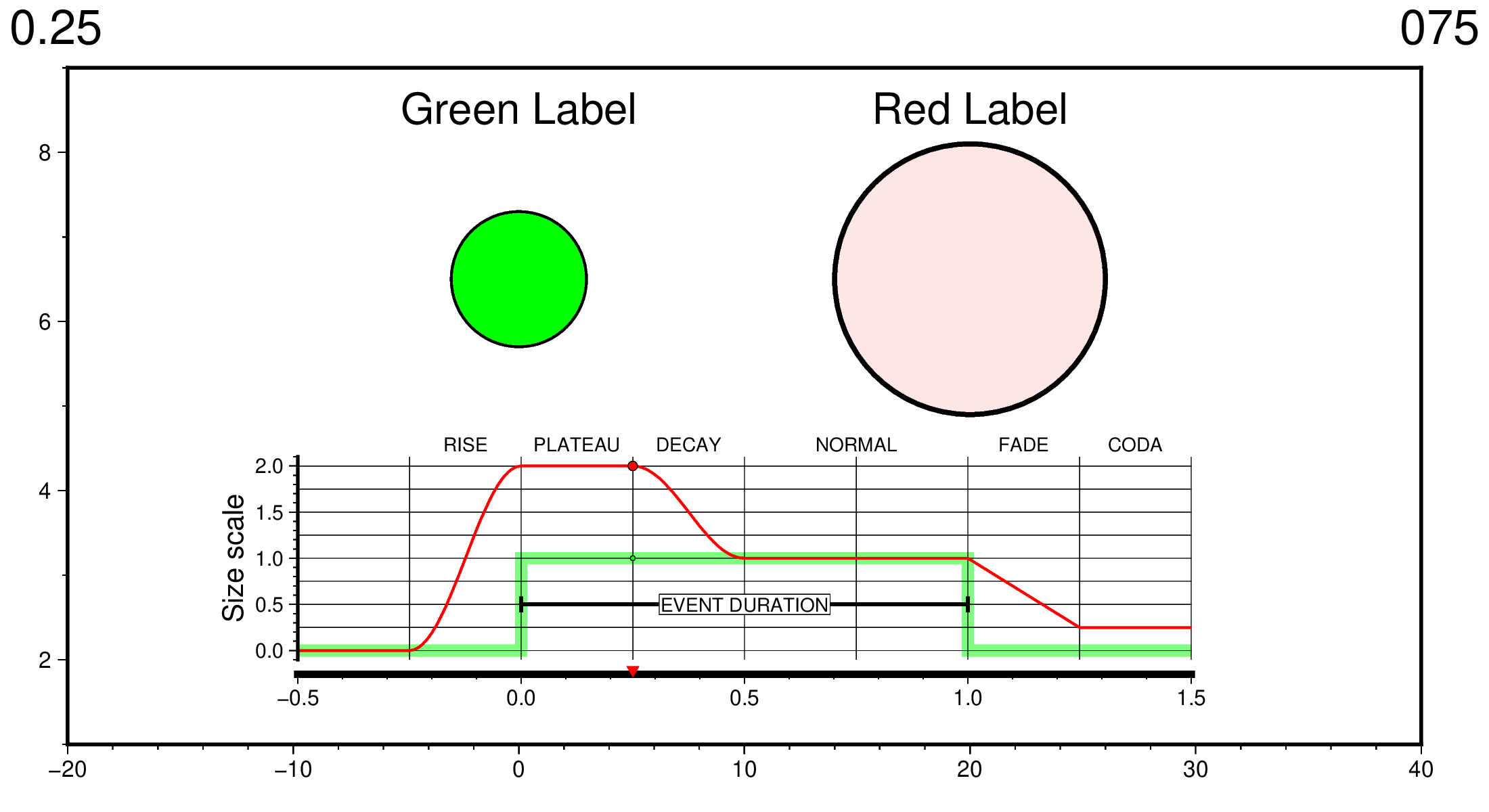

## Video 1 in this paper: WED-A_Vid_1.sh# https://github.com/GenericMappingTools/gmt-2024-animation## Wessel, Esteban & Delaviel-Anger, 2024,# The Generic Mapping Tools and Animations for the Masses,# Geochem. Geophys. Geosyst.## Purpose: Show short movie of the life of two simple events.# The movie took 53 seconds to render on an 8-core Intel® Core™ i7-3700 CPU @ 3.60GHz.#--------------------------------------------------------------------------------NAME=WED-A_Vid_1
## Create a short MP4 showing the life of two simple events.# Both events starts at 0 and ends at 1, but we add rise# and fade and coda to one of them (red) and let the other# be plain default (green) and only visible from 0-1.echo20 6.5 01 Red Label > red.txt
echo0 6.5 01 Green Label > green.txt
cat <<- EOF > labels.txt
-0.125 2 RISE
0.125 2 PLATEAU
0.375 2 DECAY
1.125 2 FADE
0.75 2 NORMAL
1.375 2 CODA
EOF# Create an approximate default scaling step function we can interpolate in eventscat <<- EOF > normal.txt
-0.5 0
-0.001 0
0 1
0.999 1
1 0
1.5 0
EOF# Create the exact default scaling step functioncat <<- EOF > stepfunction.txt
-0.5 0
0 0
0 1
1 1
1 0
1.5 0
EOF# Create file to plot event durationecho"0 0.5 1 0.5 " > duration.txt
cat <<- EOF > pre.sh
gmt begin
# Build the more complicated size vs time curve based on knowledge of what events does internally
echo "-0.5 0" > size_vs_time.txt
# Rise (t = -0.25 to 0 symbol size goes from 0 to 2x)
gmt math -T-0.25/0/0.01 1 T 0.25 ADD 0.25 DIV PI MUL COS SUB = >> size_vs_time.txt
# plateau (t = 0 to 0.25 symbol size stays at 2x)
# Decay (t = 0.25 to 0.5 symbol size decays from 2x to 1x)
gmt math -T0.25/0.5/0.01 1.5 T 0.25 SUB 0.25 DIV PI MUL COS 2 DIV ADD = >> size_vs_time.txt
# active (t = 0.5 to 1 symbol size stays at 1x)
gmt math -T0.6/1/0.1 1 = >> size_vs_time.txt
# Fade (t = 1 to 1.25 symbol size linearly drops to 0.25 during fading)
gmt math -T1.1/1.25/0.05 1 T 1 SUB 0.25 DIV SUB 0.75 MUL 0.25 ADD = >> size_vs_time.txt
# Code (t = 1.25 to 1.5 symbol size stays at 0.25 during code)
gmt math -T1.3/1.5/0.1 0.25 = >> size_vs_time.txt
# Lay down the two curves and labels as background plot. Movie starts each frame with this plot
gmt plot -R-0.5/1.5/-0.1/2.1 -JX13.2c/3c -X4.4c -Y2.25c stepfunction.txt -W5p,green@50
gmt plot size_vs_time.txt -W1p,red -BW -Bafg0.25+l"Size scale"
gmt text -F+f8p+jBC -Dj6p -N labels.txt
# Plot event width with an arrow
gmt plot duration.txt -Sv12p+s+bt+et -W1.5p -Gblack
echo 0.5 0.5 EVENT DURATION | gmt text -F+f8p+jMC -Gwhite -W0.25p
gmt end
EOFcat << 'EOF' > main.sh
gmt begin
# Animate the red circle via the -E settings to ensure changes beyond the step function
gmt events red.txt -T${MOVIE_COL0} -R-20/40/1/9 -JX20c/10c -B -Es+rc0.25+p0.25+dc0.25+f0.25 \
-Et+o0.25 -Sc2c -Gred -W1p -Ms2+c0.25 -Mi1+c-0.5 -Mt100+c50 -F+f18p+jBC -Dj2.3c -L -X1c -Y1c
# Plot the green circle at constant size and only visible during its duration
gmt events green.txt -T${MOVIE_COL0} -Sc2c -Ggreen -W1p -F+f18p+jBC -Dj2.3c -L -E
# Plot red circle moving along the red size curve as function of time
gmt sample1d size_vs_time.txt -T${MOVIE_COL0}, -Fl > red_circle.txt
gmt plot red_circle.txt -Sc4p -Gred -W0.25p -R-0.5/1.5/-0.1/2.1 -JX13.2c/3c -N -X3.4c -Y1.25c
# Plot smaller green circle moving along the default green curve as function of time
gmt sample1d normal.txt -T${MOVIE_COL0}, -Fl > green_circle.txt
gmt plot green_circle.txt -Sc2p -Ggreen -W0.25p -N
gmt end
EOF# Run the movie and add frame counter and horizontal time-progress bargmt movie -C22cx12cx100 main.sh -Sbpre.sh -N${NAME} -T-0.5/1.5/0.01 -D24 -Fmp4 -Lc0 -Lf+jTR \
-Pf+jBC+o0/1.5c+ac -M75,png -Zs -Vi
# Delete temporary filesrm -f main.sh green.txt red.txt normal.txt labels.txt stepfunction.txt duration.txt
